ASTRA HYBRID 330

Dry hire day / week rate: £45.00 / £135.00 +VAT
Trade Account Holders' discount available up to 40%

Prolights logo

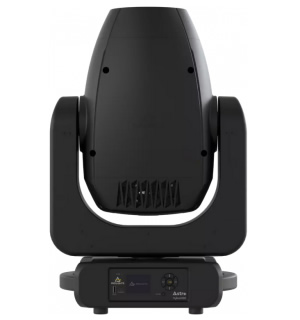

Astra Hybrid 330 is an LED moving head suitable for beam and spot applications - now available to hire from Mainline. The colour system comprises three colour wheels to achieve linear CMY mixing, with a beam zoom between 3° and 50°, again in linear steps. Dynamic effects and textures are available from a pair of gobo wheels, two overlapping prisms and a frost filter.

The superb brightness is dimmable using a choice of four smooth dimming curves with 16bit resolution. Flicker interference control is also provided using adjustable pulse width modulation (PWM).

MAIN FEATURES

  • Compact moving yoke / moving head fixture
  • Source: 330W white LED
  • Illuminance at 5m distance: 1,882 lux at 50° zoom, to 114,701 lux at 3° zoom
  • Colour temperature: 7000K max
  • Colour system: CMY, 9 dichroic filters on 3 colour wheels
  • Pan range: 540° with 16bit resolution
  • Tilt range: 270° with 16bit resolution
  • Beam zoom range: 3° to 50°
  • Control protocols: DMX, RDM, ArtNet, sACN, CRMX

MANUFACTURER'S PROMO

Promotional video

Astra Hybrid 330 can be controlled using various signal protocols including DMX and ArtNet.

Standard RJ45 network in / out connections are provided, with automatic pass-through in the event of a unit failure.



OTHER FEATURES & SPECIFICATIONS

  • Animation wheel with bi-directional rotation
  • Gobo wheels: 1 of fixed gobos plus 1 of rotating gobos
  • Fixed gobos: 11 plus open
  • Rotating gobos: 8 plus open
  • Circular and rotating prism, each with bi-directional rotation and overlap
  • Frost filter with linear 0% to 100% effect
  • Strobing: 1 to 30Hz
  • 5-pin DMX XLR connections (in and out)
  • RJ45 Art-Net connections (in and out) with pass-through in the event of failure
  • Standard Neutrik PowerCon® TRUE1 (in and out)
  • Ingress protection: IP20
  • Power consumption: 517W (maximum), 91W (standby) at 230V, 50Hz (max 4 units per single mains feed)
  • Weight: 47.6lbs (21.6kg)

MANUFACTURER'S INFORMATION & MEDIA

User manual
DMX charts
Personalities (scroll to Downloads section)



Contact us to hire Prolights Astra Hybrid 330. We serve Manchester, the North West and UK Mainland.
